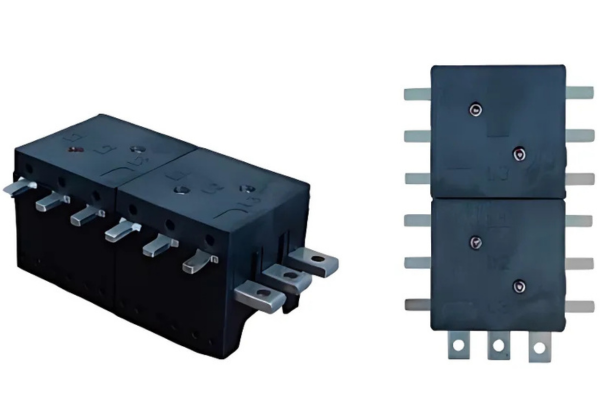

Pre-Assembled DB Busbar Pan Assemblies
Magna Electric’s Pre-Assembled Distribution Board (DB) Busbar Pan Assemblies are engineered for efficiency, safety, and space optimization. These assemblies are designed to provide reliable low-voltage power distribution with simplified installation and reduced maintenance costs.
With a compact design and standardized configurations, our DB busbar assemblies are suitable for residential, commercial, and light industrial applications, ensuring consistent performance and compliance with IEC standards.
.png)
Service Features
Compact, space-saving design.
Factory-assembled for quality assurance.
Complies with IEC 61439 standards.
Durable copper/aluminum busbars.
Available in multiple ratings.
Low maintenance and easy installation.
Technical Data
Current Rating:
| Rated Operational Current (Main Busbar Rating) |
Rated Short Circuit Withstand (Main Vertical Busbar) |
|---|---|
| 125A | Icw = 17kA for 0.25s |
| 250A | Icw = 25kA for 0.25s |
Voltage Rating:
| Rated Operational Voltage (Ue) | Rated Insulation Voltage (Ui) | Rated Impulse Withstand Voltage (Uimp) |
|---|---|---|
| Up to 415V | 690V | 6kV |
- Designed as per new standard: IEC 61439-1 & 2
- Outgoings upto: 18way TP (54way SP)
- Design ambient temperature: 50°C
- Continuous operating temperature of Mould / Insulating material: 140°C
- Glow wire performance of insulating material: 960°C
- Copper: Tin Plated, HDHC, 99.9% Purity, ETP Grade used for main busbar & interconnections
- Fully Moulded / Encapsulated busbar system
- Enables compliance to Form-2B requirements
- All fasteners used are ROHS compliant
